S103T - 100 Series

Outward Opening Timber

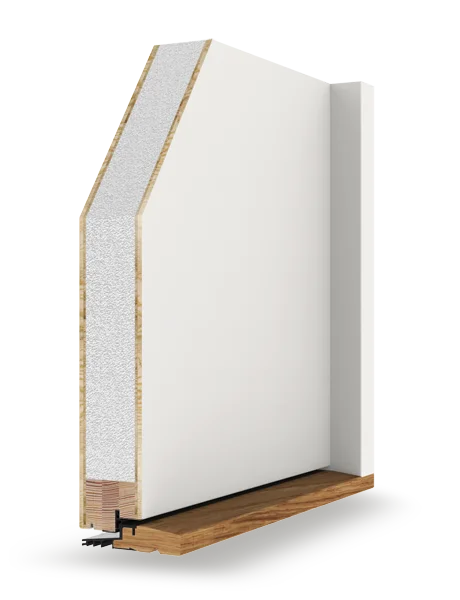

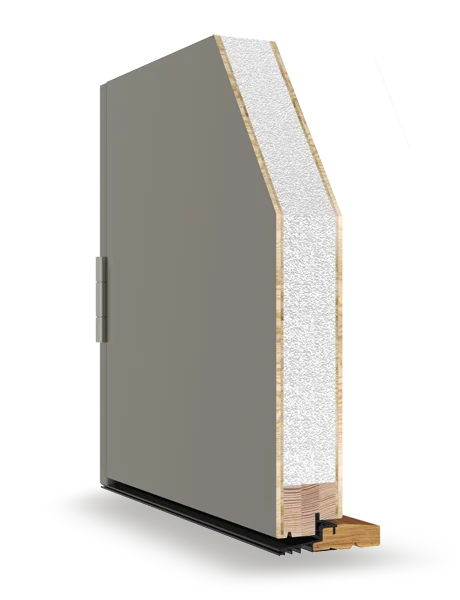

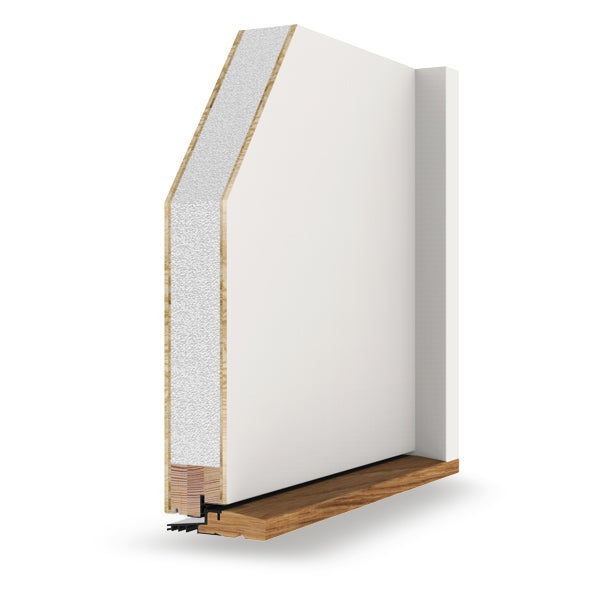

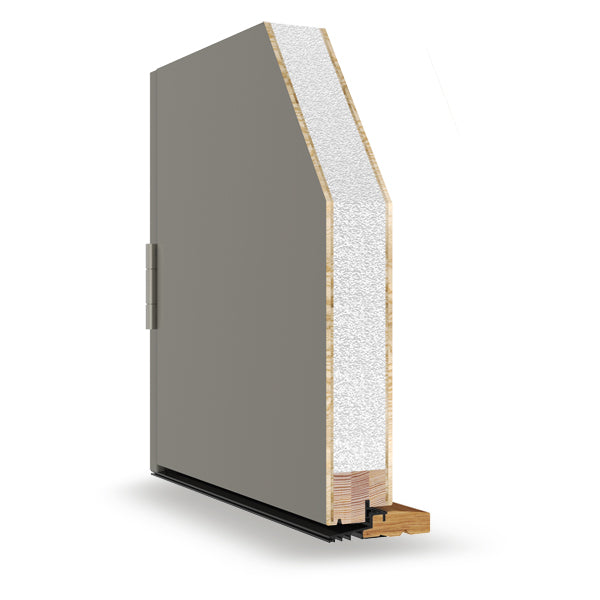

High quality insulated timber panel door
next previous
  Thermal Performance
U Value (typical) 1.2
  Sound Performance
Decibels (typical) db
  Security Performance
PAS 24

Opening types Outward Opening
Frame depth 101.5/128.5 mm
Whole window U-value 1.2 W/m²K
Glass U-value 0.56 W/m²K
Glass package 45 mm triple glazed, two panes Low-E, argon filled
Sound insulation db
Air permeability Class 4 (EN 12207:2000)
Watertightness Class E900 (EN 12208:2001)
Wind load Class 3C (EN 12210:2001)
Timber Colours RAL
Aluminium Colours RAL, IGP textured
Data sheet S103T.pdf
Drawing S103T.dwg
  Thermal Performance
U Value (typical) 1.2
0.6 0.8 1.0 1.2 1.4 1.6 1.8

  Sound Performance
Decibels (typical) db
  Security Performance
PAS 24
