S105A - 100 Series

Inward Opening Alu-Clad

Timber panel door with aluminium cladding
next previous

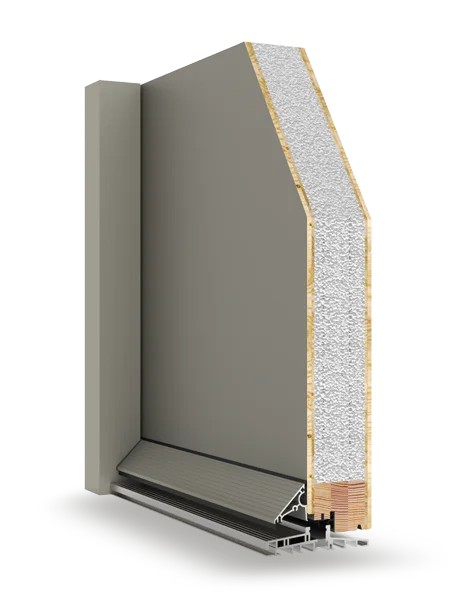

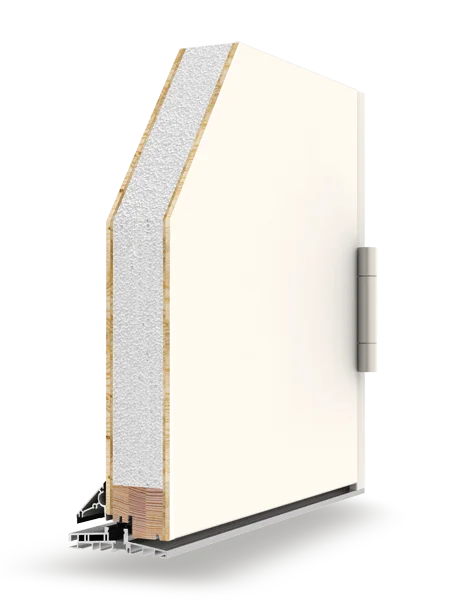

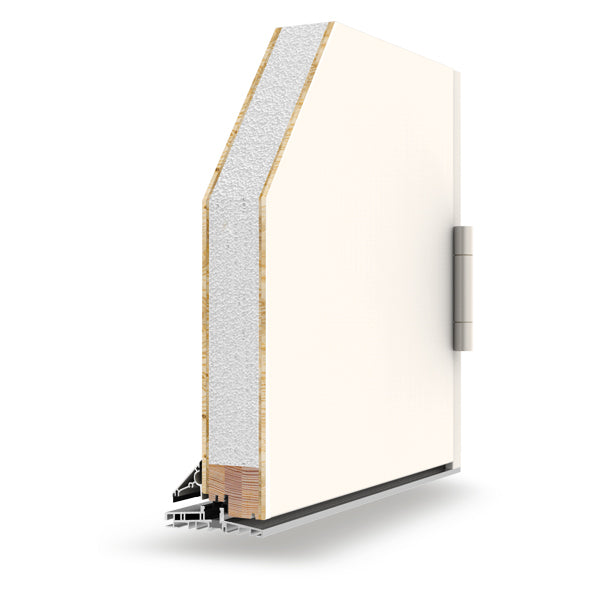

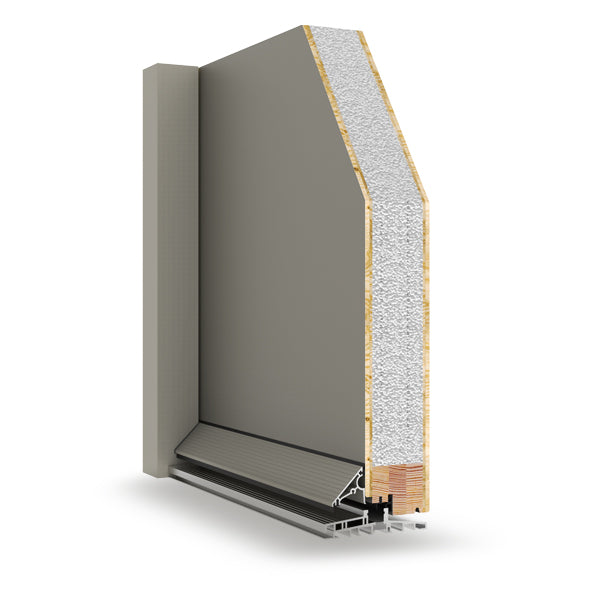

Inward opening insulated panel door. The door is a timber composite panel. The frame is engineered timber with an aluminium cladding.

The aluminium cladding on the frame makes it possible to have a different colour on the frame to the one used on the door.

Both the door and frame are available in our full range of RAL colours. For details of available panel designs click here


  Thermal Performance
U Value (typical) 1.2
  Sound Performance
Decibels (typical) db
  Security Performance
PAS 24

Opening types Inward Opening
Frame depth 131.4 mm
Whole window U-value 1.2 W/m²K
Glass U-value 0.56 W/m²K
Glass package 45 mm triple glazed, two panes Low-E, argon filled
Sound insulation db
Air permeability NPD
Watertightness NPD
Wind load NPD
Timber Colours RAL
Aluminium Colours RAL, IGP textured
Data sheet S105A.pdf
Drawing S105A.dwg
  Thermal Performance
U Value (typical) 1.2
0.6 0.8 1.0 1.2 1.4 1.6 1.8

  Sound Performance
Decibels (typical) db
  Security Performance
PAS 24
