S109A - 100 Series

Inward Opening Alu-Clad

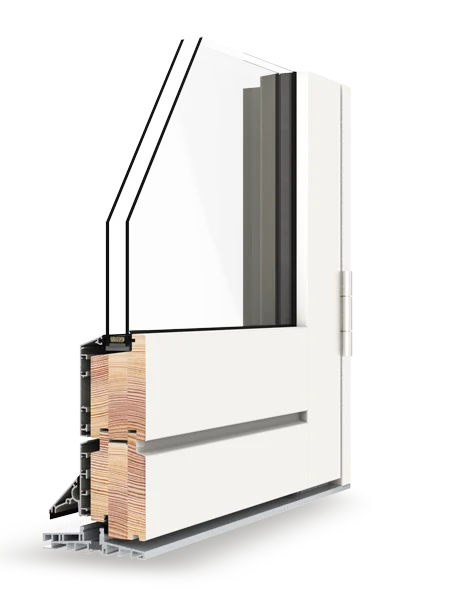

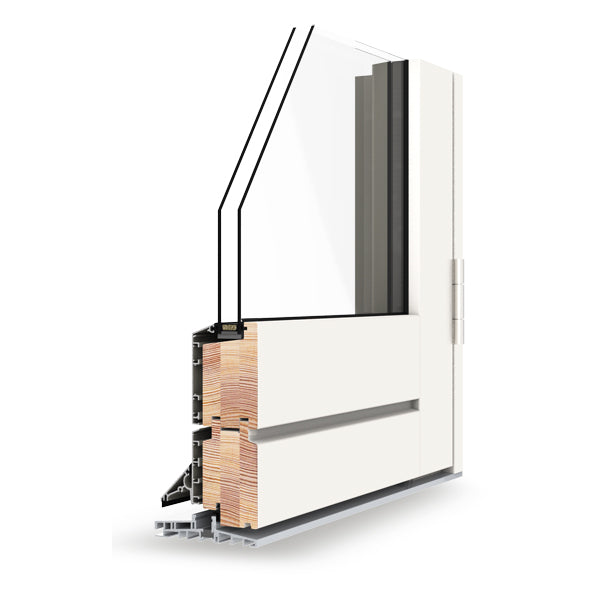

Double glazed framed timber door with aluminium cladding
next previous
  Thermal Performance
U Value (typical) 1.4
  Sound Performance
Decibels (typical) 33db
  Security Performance
PAS 24

Opening types Inward Opening
Frame depth 128.5 mm
Whole window U-value 1.4 W/m²K
Glass U-value 1.14 W/m²K
Glass package 26 mm double glazed, one pane LowE, argon filled
Sound insulation 33 db
Air permeability NPD
Watertightness NPD
Wind load NPD
Timber Colours RAL
Aluminium Colours RAL, IGP textured
Data sheet S109A.pdf
Drawing S109A.dwg
  Thermal Performance
U Value (typical) 1.4
0.6 0.8 1.0 1.2 1.4 1.6 1.8

  Sound Performance
Decibels (typical) 33db
  Security Performance
PAS 24
