S115A - 100 Series

Sliding Alu-Clad

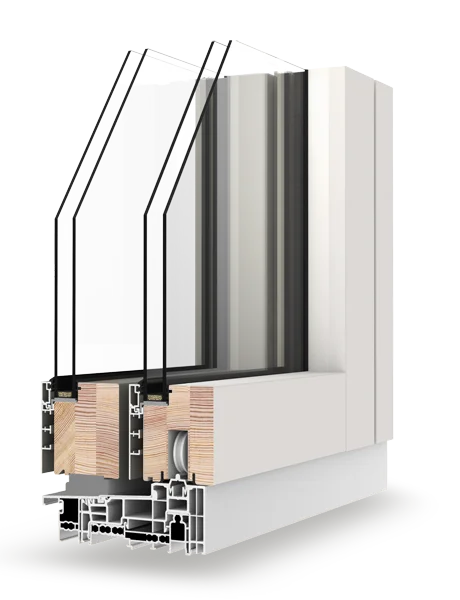

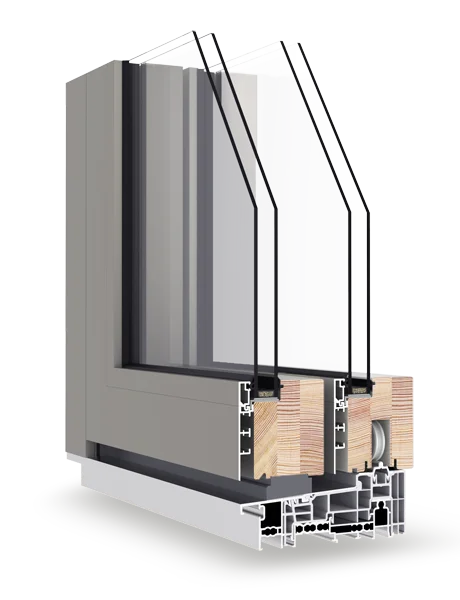

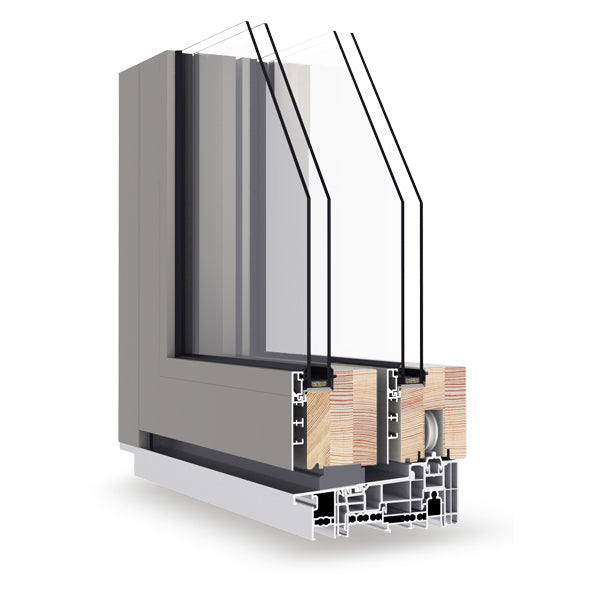

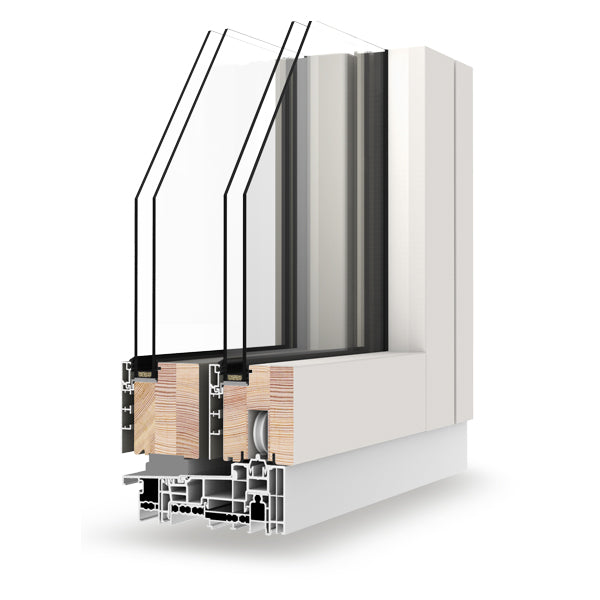

Double glazed timber lift and slide door with aluminium cladding
next previous
Superior engineering gives this door a smooth and easy operation, while also providing excellent airtightness and weather resistance.


  Thermal Performance
U Value (typical) 1.4
  Sound Performance
Decibels (typical) 34db
  Security Performance
PAS 24

Opening types Lift and Slide
Frame depth 202 mm
Whole window U-value 1.4 W/m²K
Glass U-value 1.1 W/m²K
Glass package 26 mm double glazed, one pane LowE, argon filled
Sound insulation 34 db
Air permeability Class 4 (EN 12207:2000)
Watertightness Class E750 (EN 12208:2001)
Wind load Class C4 (EN 12210:2001)
Timber Colours RAL
Aluminium Colours RAL, IGP textured
Data sheet S115A.pdf
Drawing S115A.dwg
  Thermal Performance
U Value (typical) 1.4
0.6 0.8 1.0 1.2 1.4 1.6 1.8

  Sound Performance
Decibels (typical) 34db
  Security Performance
PAS 24
