S315A - 300 Series

Lift & Slide Alu-Clad

Triple glazed sliding patio door with aluminium cladding

Description
Technical

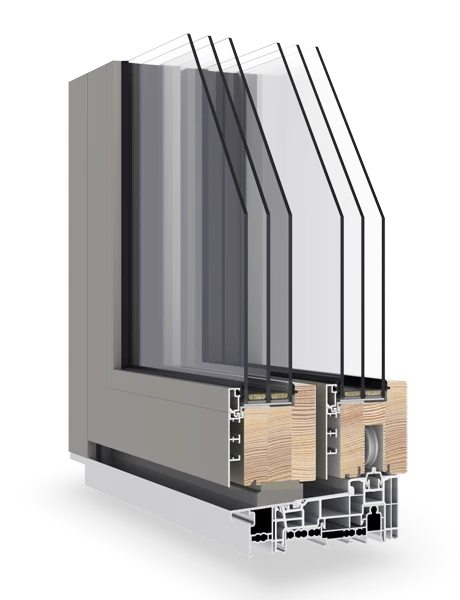

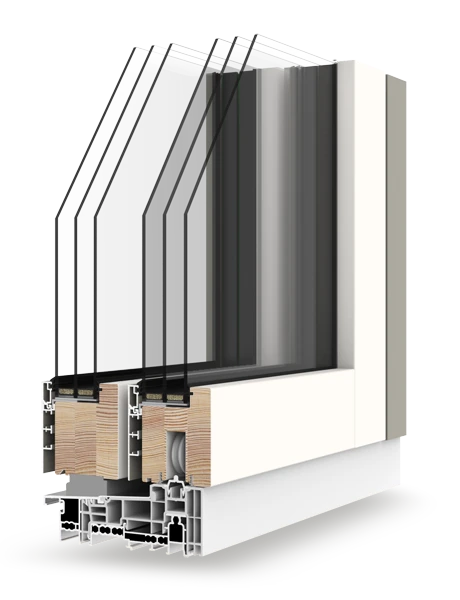

A 202mm deep triple-glazed sliding patio door with external Aluminium cladding.

Our most popular sliding door, the S315 lift and slide door can be specified to include up to four panels, with two opening panels. A wide variety of designs are possible to suit your project. Download available designs as a PDF here. Depending on the configuration, this door can be specified up to maximum dimensions of approximately 8500mm in width and 2800mm in height.

Whole door U-values are approximately 0.87W/m²K. This door is suitable for use in Passive Houses.

This door is available with a Juliet Balcony.

See the S315A in action

In this creative Yorkshire Passive House

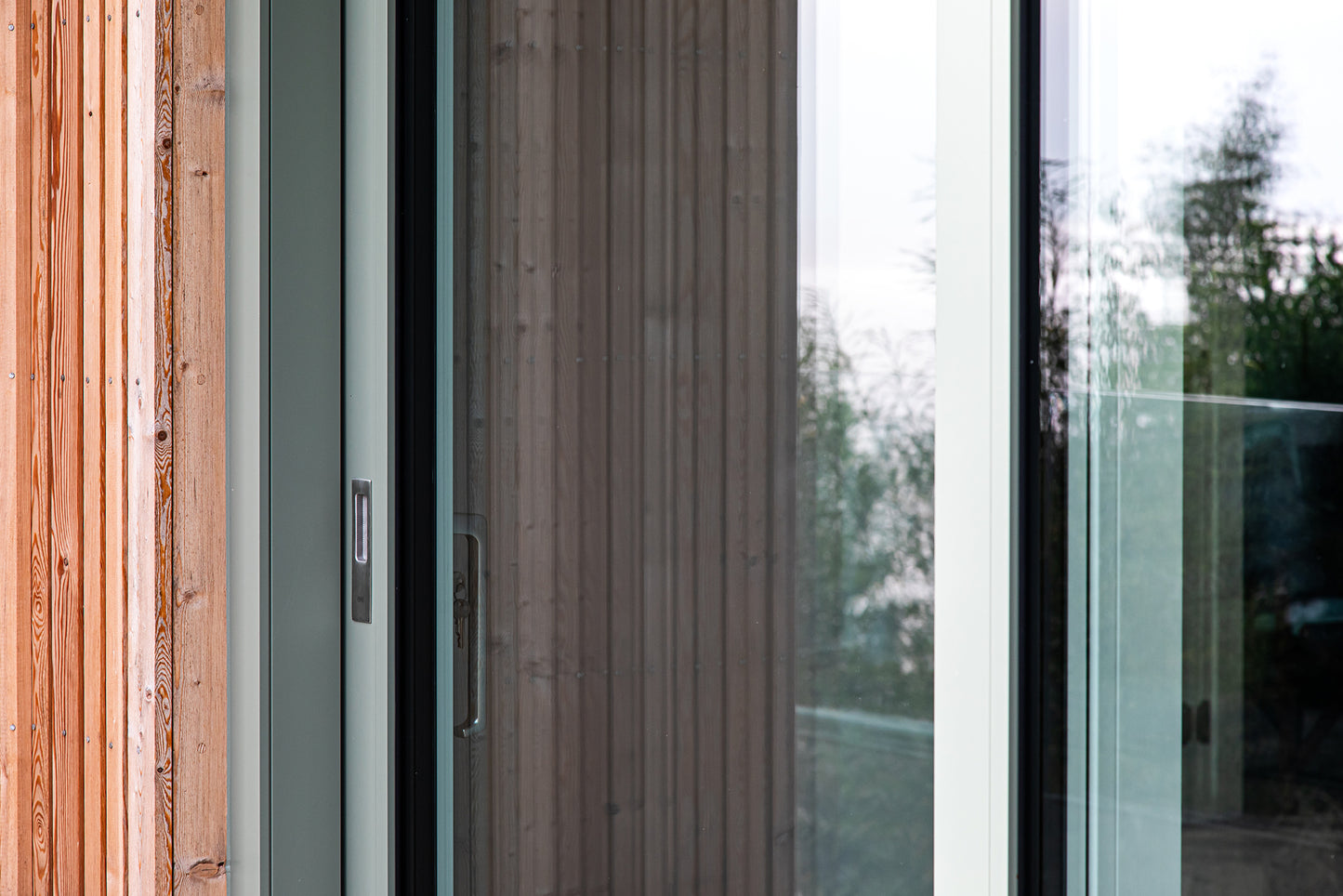

In this seaside Passive House
In these striking matching coastal new builds.
In this award-winning low energy home
In this seafront Passive House apartment block.
In this industrial-style barn conversion.
In this award-winning low energy home.
In this contemporary countryside self-build project.
In an award-winning EnerPHit retrofit project
In this traditional new build home
In this rural Passive House project.
In this modern funeral home
In this eco-style passive house

Thermal Performance
U Value (typical) 0.87

Sound Performance
Decibels (typical) 34db

Security Performance
PAS 24

Opening types	Lift and Slide
Frame depth	202 mm
Whole window U-value	0.87 W/m²K
Glass U-value	0.53 W/m²K
Glass package	52 mm triple glazed, two panes Low-E, argon filled
Sound insulation	34 db
Air permeability	Class 4 (EN 12207:2000)
Watertightness	Class E750 (EN 12208:2001)
Wind load	Class C4 (EN 12210:2001)
Timber Colours	RAL
Aluminium Colours	RAL, IGP textured
Data sheet	S315A.pdf
Drawing	S315A.dwg
