p11a - 100 Series

Outward Opening Alu-Clad

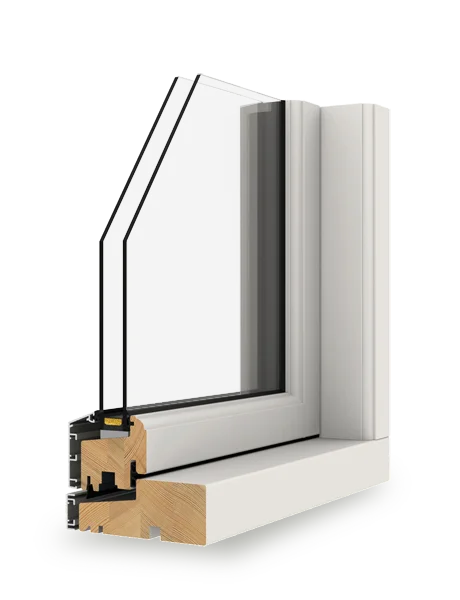

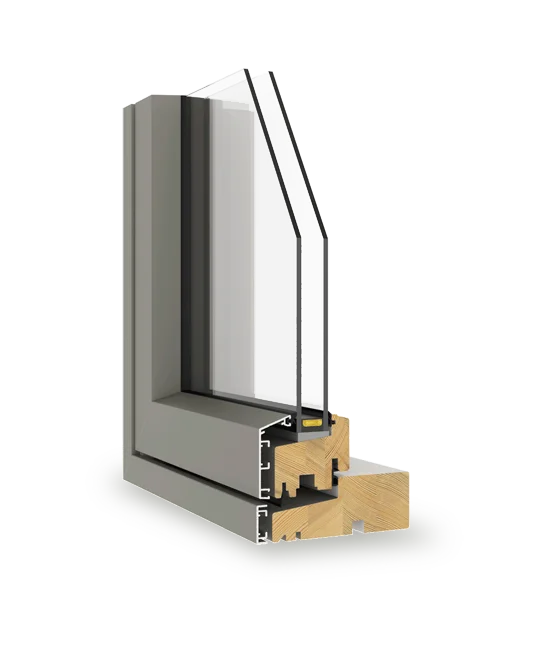

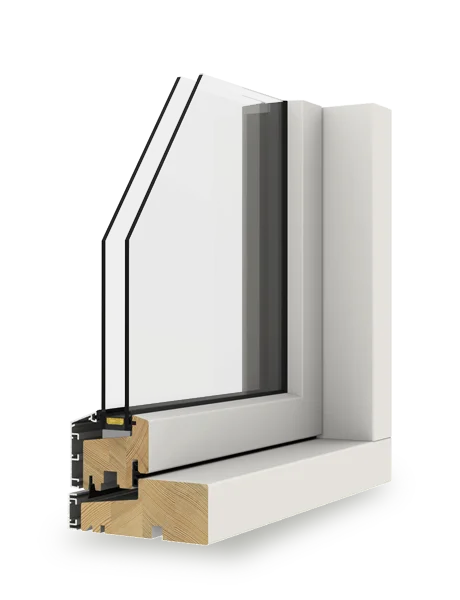

Laminated timber outward opening window with external aluminium cladding and double glazing.
next previous

This double glazed outward opening window with aluminium cladding delivers very good performance - above average for a double glazed window.

The external aluminium cladding ensures that the timber frame is protected from the elements and helps improve longevity whilst requiring minimal maintenance.

The technically advanced sprayed coatings give the timber enhanced durability and a superb finish, while the aluminium cladding is polyester powder coated. Both the aluminium cladding and the timber frame are available in a full range of RAL colours.

The double glazed unit is a 24 mm unit with argon gas filling, warm edge spacer bar  and an internal pane of Low-E glass. Whole window U-Values are around 1.2 W/m²K.

The frame is available in two depths 128.5 mm and 104.5 mm. On the deeper section frame a decorative moulding finish is available.


  Thermal Performance
U Value (typical) 1.24
  Sound Performance
Decibels (typical) 33db
  Security Performance
PAS 24

Opening types Fixed pane, Top hung, Side hung, Fully reversible
Frame depth 101.5 or 128.5 (including aluminium cladding) mm
Whole window U-value 1.24 W/m²K
Glass U-value 1.14 W/m²K
Glass package 26 mm double glazed, one pane LowE, argon filled
Sound insulation 33 db
Air permeability Class 4 (EN 12207:2000)
Watertightness Class E1200 (EN 12208:2001)
Wind load Class 5C (EN 12210:2001)
Timber Colours RAL
Aluminium Colours RAL, IGP textured
Data sheet p11a.pdf
Drawing p11a.dwg
  Thermal Performance
U Value (typical) 1.24
0.6 0.8 1.0 1.2 1.4 1.6 1.8

  Sound Performance
Decibels (typical) 33db
  Security Performance
PAS 24
