p13a - 100 Series

Inward Opening Alu-Clad

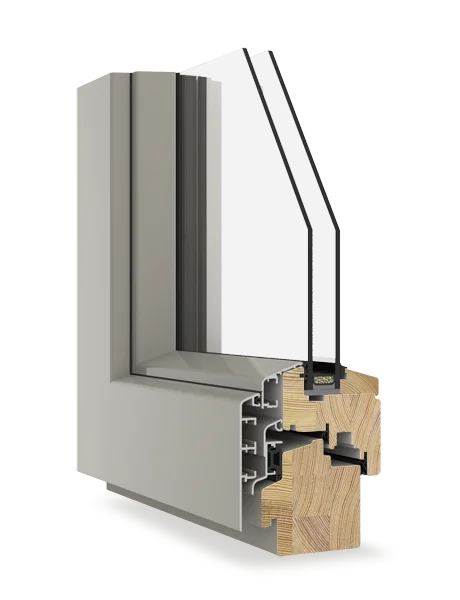

94.5mm deep inward opening window with external aluminium cladding and double glazing
next previous

The double glazed inward opening window with aluminium cladding delivers very good performance for a double glazed window. Tilt and turn windows can be tilted in for ventilation and open inwards for access and cleaning.

The external aluminium cladding ensures that the timber frame is protected from the elements and helps improve longevity whilst requiring minimal maintenance.

The technically advanced sprayed coatings give the timber enhanced durability and a superb finish, while the aluminium cladding is polyester powder coated. Both the aluminium cladding and the timber frame are available in a full range of RAL colours.

The double glazed unit is a 26 mm unit with argon gas filling, warm edge spacer bar  and an internal pane of Low-E glass. Whole window U-Values are around 1.3 W/m²K.


  Thermal Performance
U Value (typical) 1.29
  Sound Performance
Decibels (typical) 33db
  Security Performance
PAS 24

Opening types Fixed pane, Tilt and turn, Tilt only, turn only
Frame depth 94.5 mm
Whole window U-value 1.29 W/m²K
Glass U-value 1.14 W/m²K
Glass package 26 mm double glazed, one pane Low-E, argon filled
Sound insulation 33 db
Air permeability Class 4 (EN 12207:2000)
Watertightness Class E900 (EN 12208:2001)
Wind load Class C4 (EN 12210:2001)
Timber Colours RAL
Aluminium Colours RAL, IGP textured
Data sheet p13a.pdf
Drawing p13a.dwg
  Thermal Performance
U Value (typical) 1.29
0.6 0.8 1.0 1.2 1.4 1.6 1.8

  Sound Performance
Decibels (typical) 33db
  Security Performance
PAS 24
