p23t - 200 Series

Inward Opening Timber

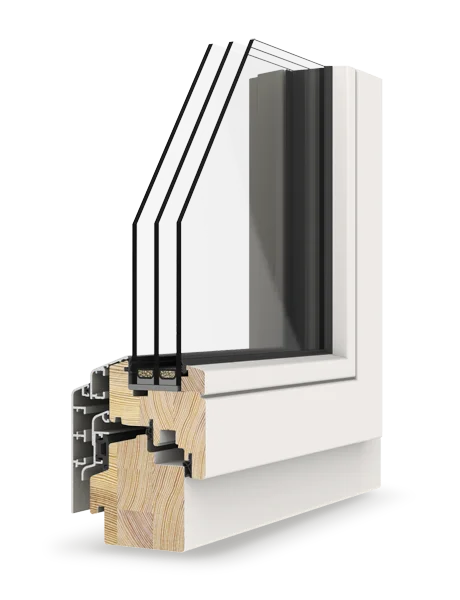

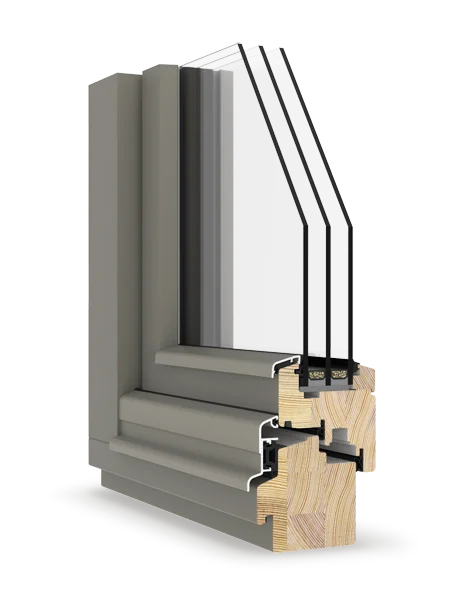

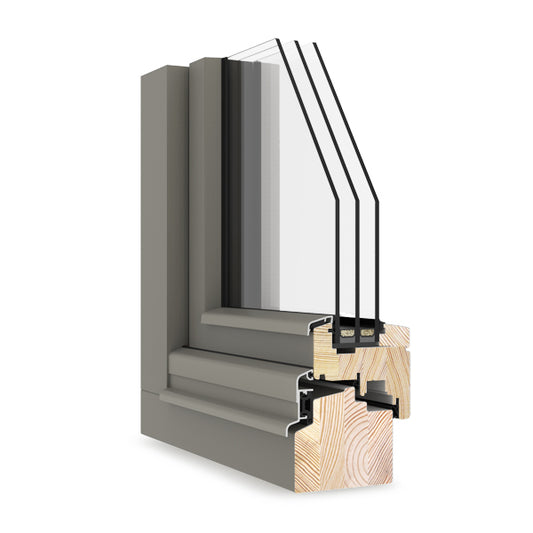

78mm deep laminated timber inward opening window with triple glazing
next previous

Where a full timber window is preferred, this triple glazed inward opening window delivers excellent performance.

Tilt and turn windows can be tilted in for ventilation and open inwards for access and cleaning.

The application of technically advanced sprayed coatings (in a full range of RAL colours) gives enhanced durability and a superb finish.

The 78mm laminated frame is combined with a 40mm triple glazed unit with argon gas filling, warm edge spacer bar  and two internal panes of Low-E glass. Whole window U-Values are around 0.9 W/m²K.


  Thermal Performance
U Value (typical) 0.94
  Sound Performance
Decibels (typical) 35db
  Security Performance
PAS 24

Opening types Fixed pane, Tilt and turn, Tilt only, turn only
Frame depth 78 mm
Whole window U-value 0.94 W/m²K
Glass U-value 0.64 W/m²K
Glass package 40 mm triple glazed, two panes Low-E, argon filled
Sound insulation 35 db
Air permeability Class 4 (EN 12207:2000)
Watertightness Class E900 (EN 12208:2001)
Wind load Class C4 (EN 12210:2001)
Timber Colours RAL
Aluminium Colours RAL, IGP textured
Data sheet p23t.pdf
Drawing p23t.dwg
  Thermal Performance
U Value (typical) 0.94
0.6 0.8 1.0 1.2 1.4 1.6 1.8

  Sound Performance
Decibels (typical) 35db
  Security Performance
PAS 24
