p31t - 300 Series

Outward Opening Timber

High performance laminated timber outward opening window with triple glazing.
next previous

If you are looking for a traditional timber casement or cottage window design coupled with really high performance, Norrsken’s P31T Outward Opening Timber Window is perfect.

The all timber construction of the windows makes it suitable where conservation or planning requirements stipulate timber. Its performance makes it suitable for energy efficient homes including passive houses.

The application of technically advanced sprayed coatings (in a full range of RAL colours) gives enhanced durability and a superb finish.

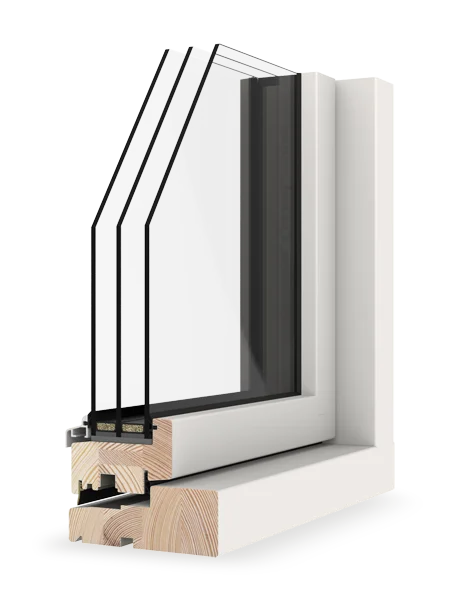

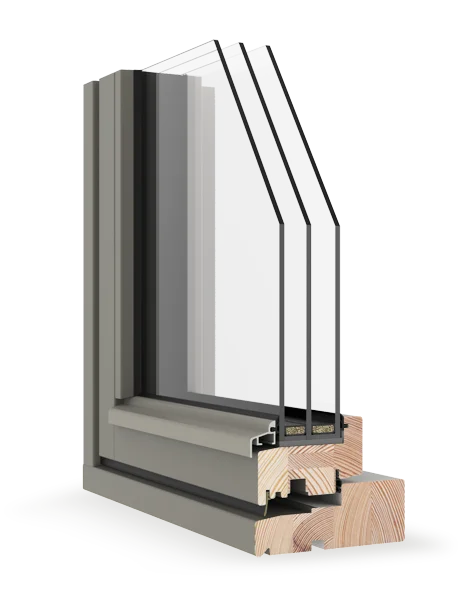

The triple glazed unit is a 48 mm unit with argon gas filling, warm edge spacer bar  and two panes of Low-E glass. Whole window U-Values are around 0.75 W/m²K.

The frame is available in depths from 92 mm to 120 mm. On the deeper section frame a decorative moulding finish is available.


      See the P31T in action

  Thermal Performance
U Value (typical) 0.75
  Sound Performance
Decibels (typical) 33db
  Security Performance
PAS 24

Opening types Fixed pane, Top hung, Side hung, Fully reversible
Frame depth 92/120 mm
Whole window U-value 0.75 W/m²K
Glass U-value 0.53 W/m²K
Glass package 48 mm triple glazed, two panes Low-E, argon filled
Sound insulation 33 db
Air permeability Class 4 (EN 12207:2000)
Watertightness Class E1500 (EN 12208:2001)
Wind load NPD
Timber Colours RAL
Aluminium Colours RAL, IGP textured
Data sheet p31t.pdf
Drawing p31t.dwg
  Thermal Performance
U Value (typical) 0.75
0.6 0.8 1.0 1.2 1.4 1.6 1.8

  Sound Performance
Decibels (typical) 33db
  Security Performance
PAS 24
