p32a - 300 Series

Outward Opening Alu-Clad

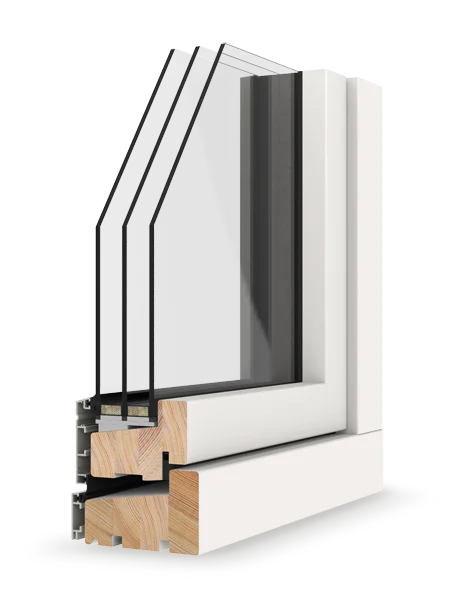

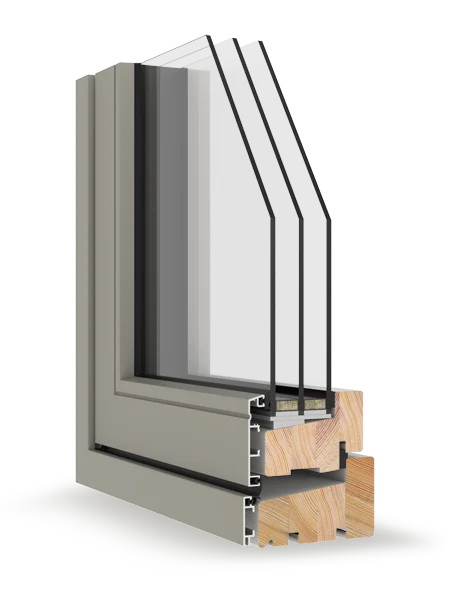

High performance timber outward opening window with external aluminium cladding and triple glazing.
next previous

This triple glazed outward opening window with aluminium cladding delivers excellent performance and is suitable for extremely energy efficient homes including Passive houses.

The external aluminium cladding ensures that the timber frame is protected from the elements and helps improve longevity whilst requiring minimal maintenance.

Designed for particularly efficient manufacture this window provides a combination of very good performance and excellent value for money.

The coatings give the timberan excellent finish, while the aluminium cladding is polyester powder coated. Both the aluminium cladding and the timber frame are available in a full range of RAL colours.

The triple glazed unit is a 48 mm unit with argon gas filling, warm edge spacer bar and two panes of Low-E glass. Whole window U-Values are around 0.76 W/m²K.

  Thermal Performance
U Value (typical) 0.76
  Sound Performance
Decibels (typical) 33db
  Security Performance
PAS 24

Opening types Fixed pane, Top hung, Side hung, Fully reversible
Frame depth 0 mm
Whole window U-value 0.76 W/m²K
Glass U-value 0 W/m²K
Glass package 48 mm triple glazed, two panes Low-E, argon filled
Sound insulation 33 db
Air permeability
Watertightness
Wind load NPD
Timber Colours RAL
Aluminium Colours RAL, IGP textured
Data sheet p32a.pdf
Drawing p32a.dwg
  Thermal Performance
U Value (typical) 0.76
0.6 0.8 1.0 1.2 1.4 1.6 1.8

  Sound Performance
Decibels (typical) 33db
  Security Performance
PAS 24
