p41t - 400 Series

Outward Opening Timber

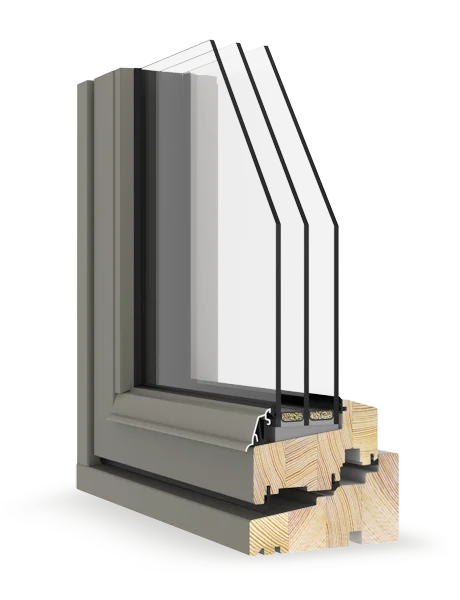

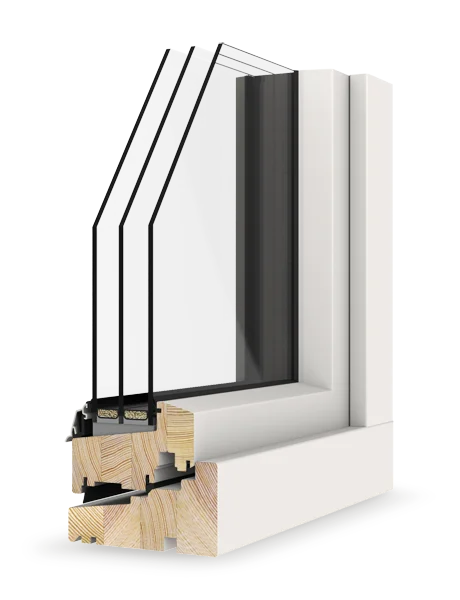

120mm laminated spruce timber outward opening window with triple glazing.
next previous
Our highest performing outward opening product, this triple glazed window delivers truly outstanding performance and is s available in two versions - a certified passive house product and a standard non-certified version.

The certified version uses Spruce as the material for the timber frame and has an even higher glass specification. This combination offers ultimate performance.

The all timber construction of the windows makes it suitable where conservation or planning requirements stipulate timber. Its performance makes it suitable for energy efficient homes including passive houses.

The application of technically advanced sprayed coatings (in a full range of RAL colours) gives enhanced durability and a superb finish.
The triple glazed unit is a 50 mm unit with argon gas filling, warm edge spacer bar and two panes of Low-E glass. Whole window U-Values are around 0.68W/m²K.

  Thermal Performance
U Value (typical) 0.68
  Sound Performance
Decibels (typical) 34db
  Security Performance
EN 14351-1:2006

Opening types Fixed pane, Top hung, Side hung, Fully reversible
Frame depth 120 mm
Whole window U-value 0.68 W/m²K
Glass U-value 0.47 W/m²K
Glass package 50 mm triple glazed, two panes Low-E, argon filled
Sound insulation 34 db
Air permeability Class 4 (EN 12207:2000)
Watertightness Class E1500 (EN 12208:2001)
Wind load Class 5C (EN 12210:2001)
Timber Colours RAL
Aluminium Colours RAL
Data sheet p41t.pdf
Drawing p41t.dwg
  Thermal Performance
U Value (typical) 0.68
0.6 0.8 1.0 1.2 1.4 1.6 1.8

  Sound Performance
Decibels (typical) 34db
  Security Performance
EN 14351-1:2006
