S107T - 100 Series

Outward Opening Timber

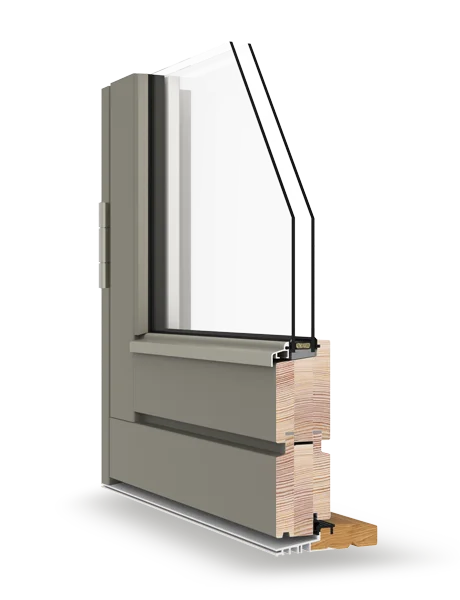

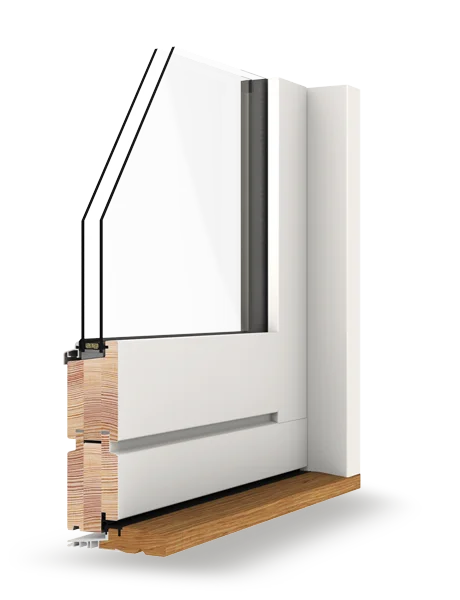

Double glazed timber framed door
next previous
  Thermal Performance
U Value (typical) 1.4
  Sound Performance
Decibels (typical) 33db
  Security Performance
PAS 24

Opening types Outward Opening
Frame depth 116 mm
Whole window U-value 1.4 W/m²K
Glass U-value 1.14 W/m²K
Glass package 26 mm double glazed, one pane LowE, argon filled
Sound insulation 33 db
Air permeability Class 4 (EN 12207:2000)
Watertightness Class E900 (EN 12208:2001)
Wind load Class 3C (EN 12210:2001)
Timber Colours RAL
Aluminium Colours RAL, IGP textured
Data sheet S107T.pdf
Drawing S107T.dwg
  Thermal Performance
U Value (typical) 1.4
0.6 0.8 1.0 1.2 1.4 1.6 1.8

  Sound Performance
Decibels (typical) 33db
  Security Performance
PAS 24
