S305T - 300 Series

Inward Opening Timber

Insulated timber panel door
next previous

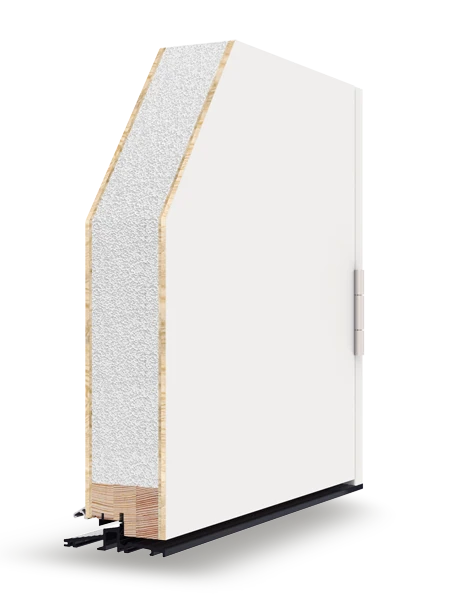

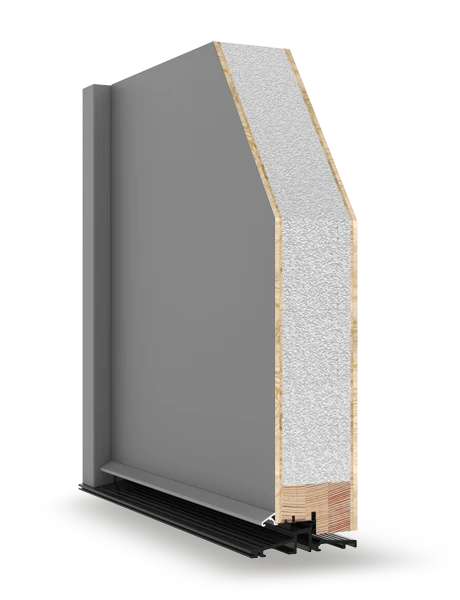

Inward opening insulated panel door. The door is a timber composite panel. The frame is engineered timber.

Both the door and frame are available in our full range of RAL colours. For details of available panel designs click here

Typical U-values are approximately 0.74 W/m²K. This door is suitable for use in Passive Houses.


  Thermal Performance
U Value (typical) 0.74
  Sound Performance
Decibels (typical) 33db
  Security Performance
PAS 24

Opening types Inward Opening
Frame depth 92/120 mm
Whole window U-value 0.74 W/m²K
Glass U-value 0.53 W/m²K
Glass package 48 mm triple glazed, two panes Low-E, argon filled
Sound insulation 33 db
Air permeability Class 4 (EN 12207:2000)
Watertightness Class 7A (EN 12208:2001)
Wind load NPD
Timber Colours RAL
Aluminium Colours RAL, IGP textured
Data sheet S305T.pdf
Drawing S305T.dwg
  Thermal Performance
U Value (typical) 0.74
0.6 0.8 1.0 1.2 1.4 1.6 1.8

  Sound Performance
Decibels (typical) 33db
  Security Performance
PAS 24
