S407A - 400 Series

Outward Opening Alu-Clad

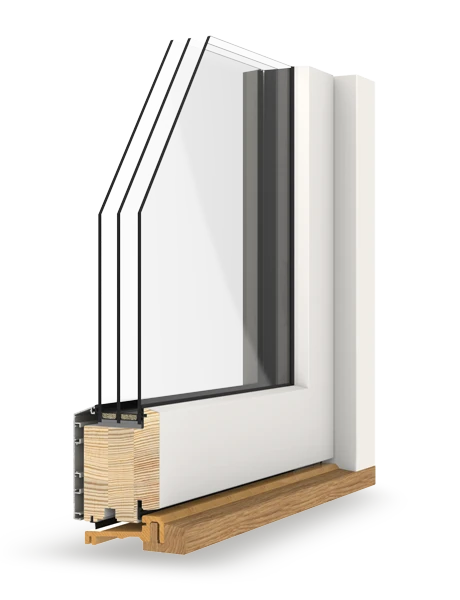

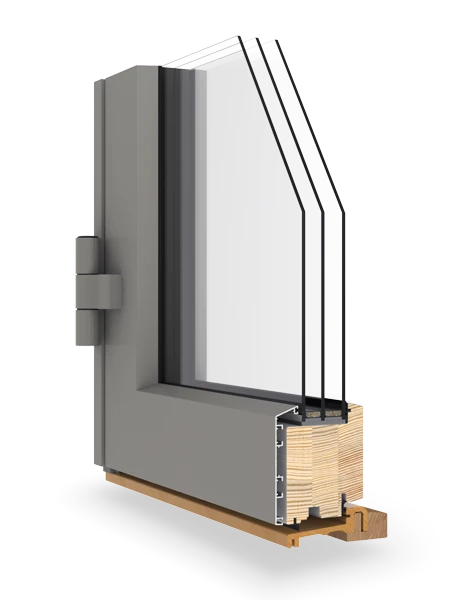

Triple glazed timber framed door with aluminium cladding
next previous
  Thermal Performance
U Value (typical) 0.74
  Sound Performance
Decibels (typical) db
  Security Performance
PAS 24

Opening types Outward Opening
Frame depth 132.5 mm
Whole window U-value 0.74 W/m²K
Glass U-value 0.53 W/m²K
Glass package 50 mm triple glazed, two panes Low-E, argon filled
Sound insulation db
Air permeability Class 4; (EN 12207:2000)
Watertightness Class 8A; (EN 12208:2001)
Wind load NPD
Timber Colours RAL
Aluminium Colours RAL, IGP textured
Data sheet S407A.pdf
Drawing S407A.dwg
  Thermal Performance
U Value (typical) 0.74
0.6 0.8 1.0 1.2 1.4 1.6 1.8

  Sound Performance
Decibels (typical) db
  Security Performance
PAS 24
