S307T - 300 Series

Outward Opening Timber

Triple glazed timber framed door
next previous

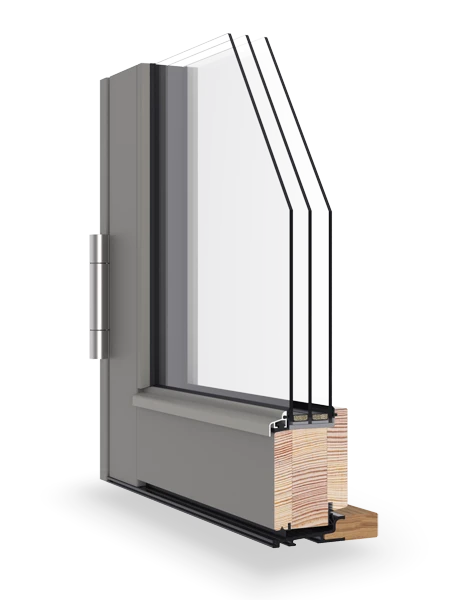

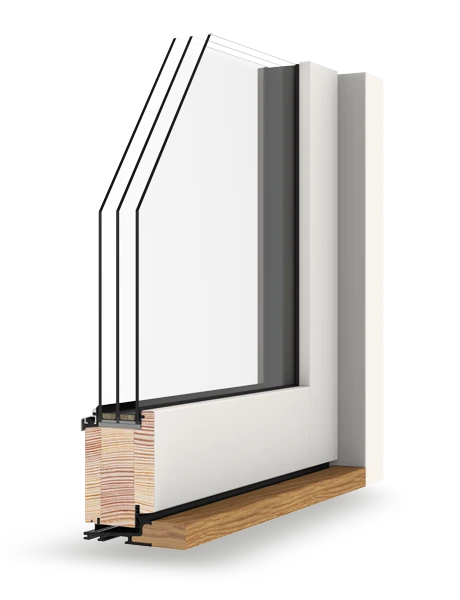

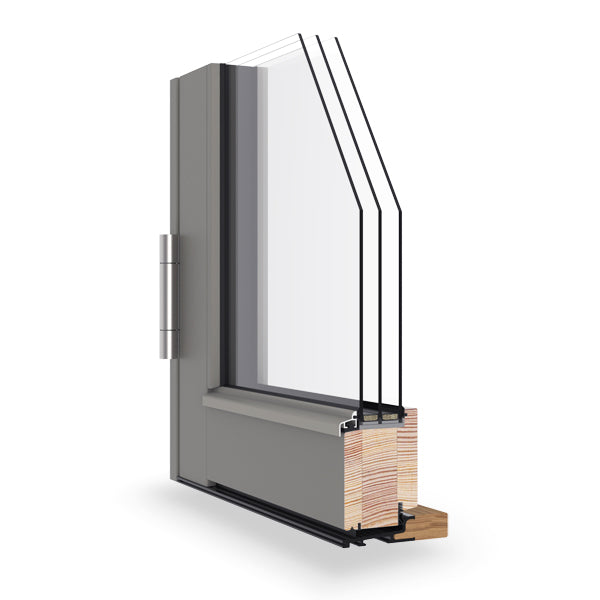

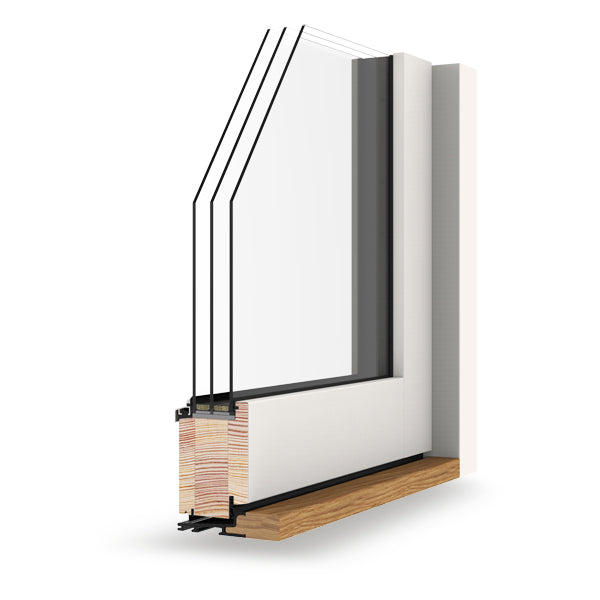

A triple-glazed timber framed door.

One of our most popular framed doors, this model is available as a single entrance door or double doors, with or without sidelights. Hinges allowing 180-degree opening can be specified if required. Based on the same frame model as the P31, frame depths are variable from 94-122mm.

Typical U-values are approximately 0.76 w/m²K. This door is suitable for use in Passive Houses.

  Thermal Performance
U Value (typical) 0.76
  Sound Performance
Decibels (typical) 33db
  Security Performance
PAS 24

Opening types Outward Opening
Frame depth 92/120 mm
Whole window U-value 0.76 W/m²K
Glass U-value 0.53 W/m²K
Glass package 48 mm triple glazed, two panes Low-E, argon filled
Sound insulation 33 db
Air permeability Class 4 (EN 12207:2000)
Watertightness Class 7A (EN 12208:2001)
Wind load NPD
Timber Colours RAL
Aluminium Colours RAL, IGP textured
Data sheet S307T.pdf
Drawing S307T.dwg
  Thermal Performance
U Value (typical) 0.76
0.6 0.8 1.0 1.2 1.4 1.6 1.8

  Sound Performance
Decibels (typical) 33db
  Security Performance
PAS 24
