p13t - 100 Series

Inward Opening Timber

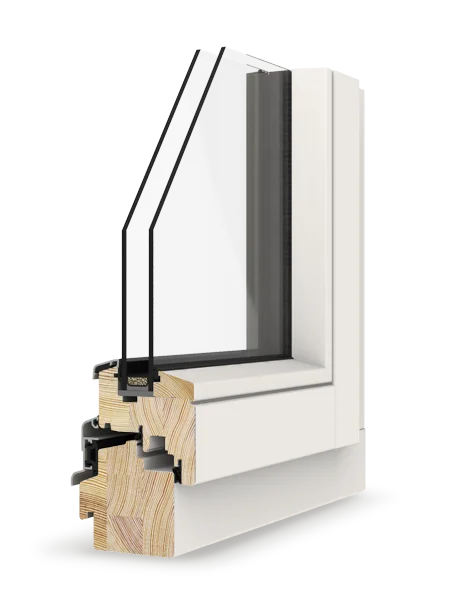

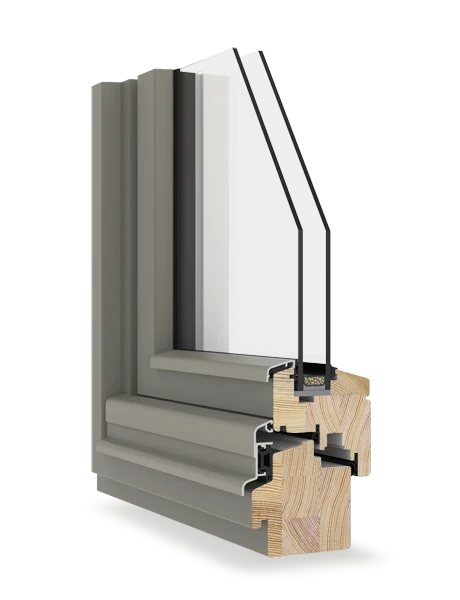

78mm deep laminated timber inward opening window with double glazing
next previous

Where a full timber window is preferred, this double glazed inward opening window with aluminium cladding delivers very good performance.

Tilt and turn windows can be tilted in for ventilation and open inwards for access and cleaning.

The application of technically advanced sprayed coatings (in a full range of RAL colours) gives enhanced durability and a superb finish.

The double glazed unit is a 26 mm unit with argon gas filling, warm edge spacer bar  and an internal pane of Low-E glass. Whole window U-Values are around 1.3 W/m²K.


  Thermal Performance
U Value (typical) 1.29
  Sound Performance
Decibels (typical) 33db
  Security Performance
PAS 24

Opening types Fixed pane, Tilt and turn, Tilt only, turn only
Frame depth 78 mm
Whole window U-value 1.29 W/m²K
Glass U-value 1.14 W/m²K
Glass package 26 mm double glazed, one pane Low-E, argon filled
Sound insulation 33 db
Air permeability Class 4 (EN 12207:2000)
Watertightness Class E900 (EN 12208:2001)
Wind load Class C4 (EN 12210:2001)
Timber Colours RAL
Aluminium Colours RAL, IGP textured
Data sheet p13t.pdf
Drawing p13t.dwg
  Thermal Performance
U Value (typical) 1.29
0.6 0.8 1.0 1.2 1.4 1.6 1.8

  Sound Performance
Decibels (typical) 33db
  Security Performance
PAS 24
