p23a - 200 Series

Inward Opening Alu-Clad

94.5mm deep inward opening window with external aluminium cladding and triple glazing
next previous

This triple glazed inward opening window with aluminium cladding delivers excellent performance.

Tilt and turn windows can be tilted in for ventilation and open inwards for access and cleaning.

The external aluminium cladding ensures that the timber frame is protected from the elements and helps improve longevity whilst requiring minimal maintenance.

The technically advanced sprayed coatings give the timber enhanced durability and a superb finish, while the aluminium cladding is polyester powder coated. Both the aluminium cladding and the timber frame are available in a full range of RAL colours.

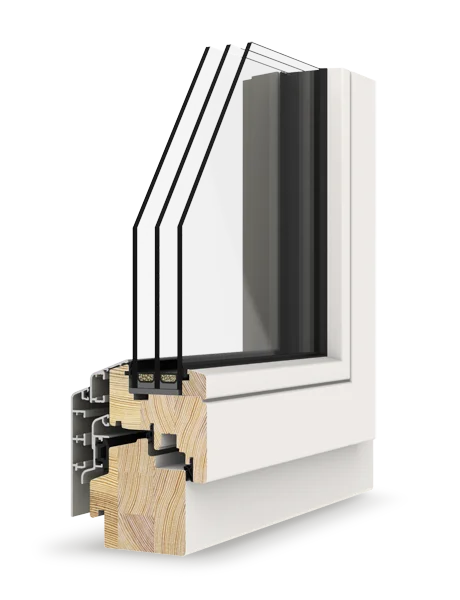

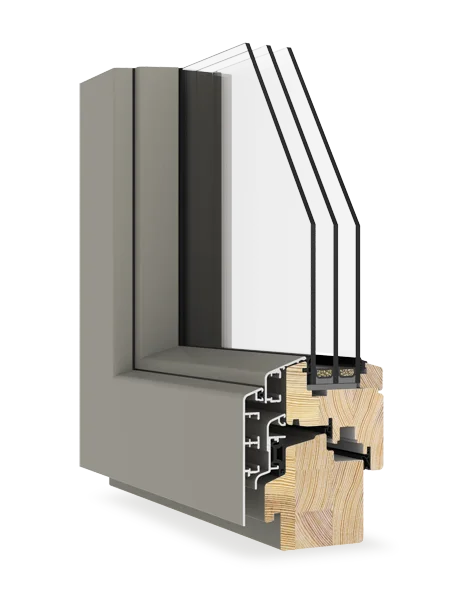

The 78mm laminated frame is combined with a 40mm triple glazed unit with argon gas filling, warm edge spacer bar  and two internal panes of Low-E glass. Whole window U-Values are around 0.9 W/m²K.



      See the P23A in action

  Thermal Performance
U Value (typical) 0.94
  Sound Performance
Decibels (typical) 35db
  Security Performance
PAS 24

Opening types Fixed pane, Tilt and turn, Tilt only, turn only
Frame depth 94.5 mm
Whole window U-value 0.94 W/m²K
Glass U-value 0.64 W/m²K
Glass package 40 mm triple glazed, two panes Low-E, argon filled
Sound insulation 35 db
Air permeability Class 4 (EN 12207:2000)
Watertightness Class E900 (EN 12208:2001)
Wind load Class C4 (EN 12210:2001)
Timber Colours RAL
Aluminium Colours RAL, IGP textured
Data sheet p23a.pdf
Drawing p23a.dwg
  Thermal Performance
U Value (typical) 0.94
0.6 0.8 1.0 1.2 1.4 1.6 1.8

  Sound Performance
Decibels (typical) 35db
  Security Performance
PAS 24
