p44a - 400 Series

Inward Opening Alu-Clad

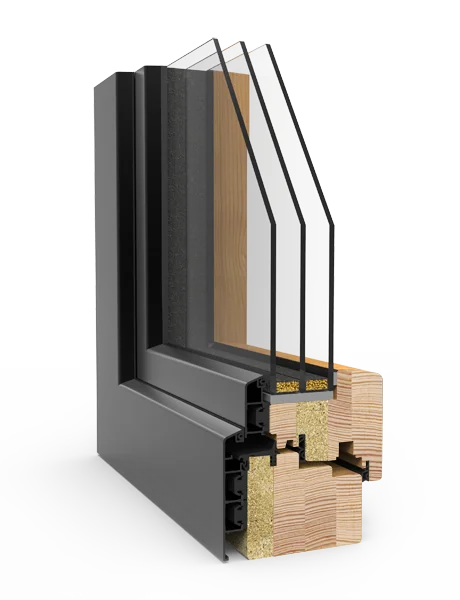

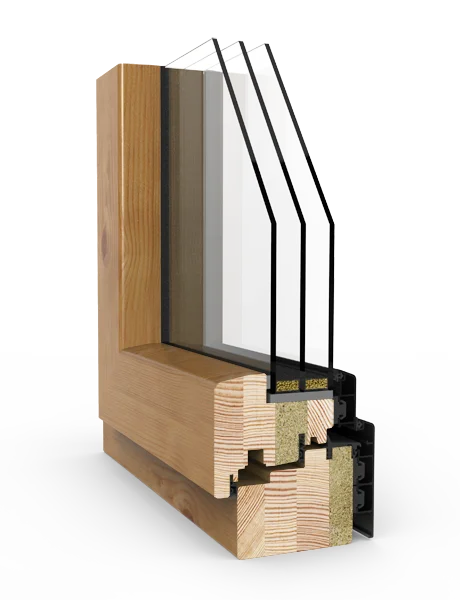

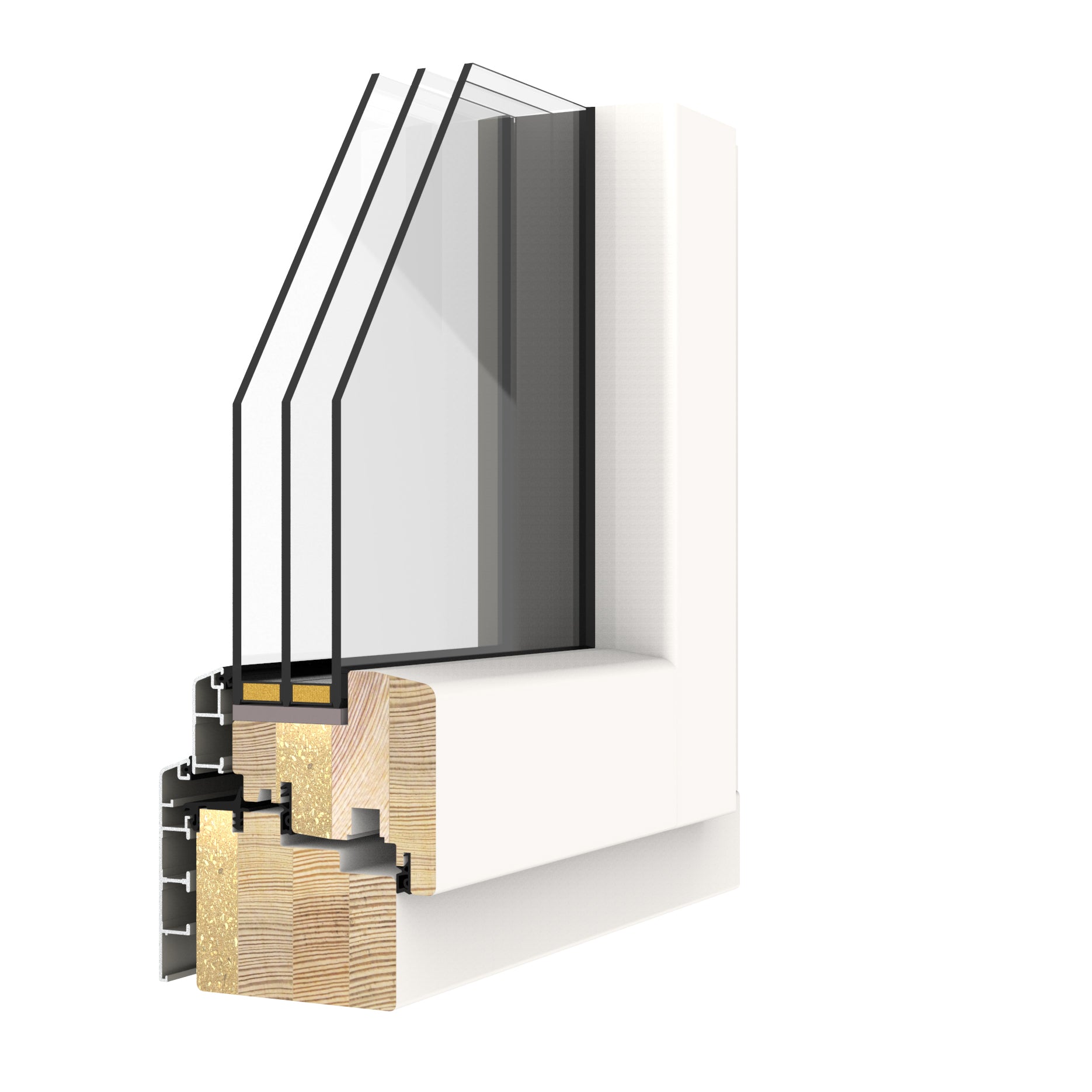

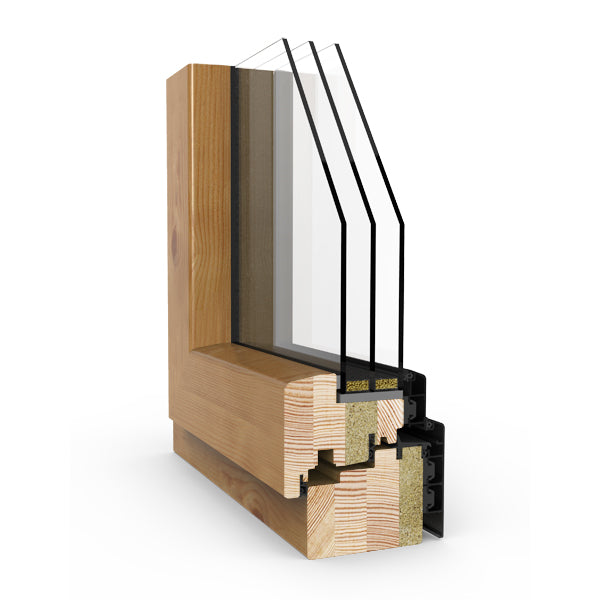

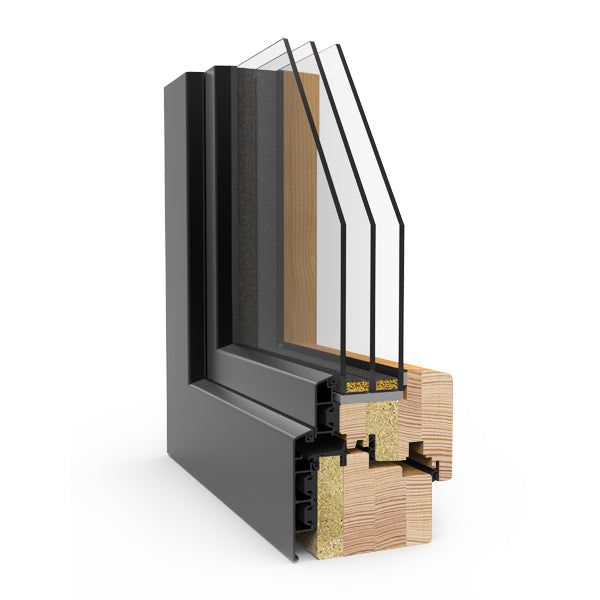

88mm laminated timber inward opening window with triple glazing with bonded "Purenit" insulation layer
next previous
This triple glazed inward opening window with aluminium cladding delivers superb performance and is suitable for highly energy efficient homes including Passive houses.

The 88mm laminated timber frame is thermally enhanced by a layer of "Purenit" insulation while external aluminium cladding ensures that the timber frame is protected from the elements and helps improve longevity whilst requiring minimal maintenance.

Tilt and turn windows can be tilted in for ventilation and open inwards for access and cleaning.

The technically advanced sprayed coatings give the timber enhanced durability and a superb finish, while the aluminium cladding is polyester powder coated. Both the aluminium cladding and the timber frame are available in a full range of RAL colours.

The triple glazed unit is a 48 mm unit with argon gas filling, warm edge spacer bar  and two internal panes of Low-E glass. Whole window U-Values are around 0.65 W/m²K.

  Thermal Performance
U Value (typical) 0.64
  Sound Performance
Decibels (typical) 31db
  Security Performance
PAS 24

Opening types Fixed pane, Tilt and turn, Tilt only, turn only
Frame depth 88mm mm
Whole window U-value 0.64 W/m²K
Glass U-value 0.5 W/m²K
Glass package 48 mm triple glazed, two panes Low-E, argon filled
Sound insulation 31 db
Air permeability Class C4 (EN 12210:2001)
Watertightness Class E900 (EN 12208:2001)
Wind load Class 4 (EN 12207:2000)
Timber Colours RAL
Aluminium Colours RAL, IGP textured
Data sheet p44a.pdf
Drawing p44a.dwg
  Thermal Performance
U Value (typical) 0.64
0.6 0.8 1.0 1.2 1.4 1.6 1.8

  Sound Performance
Decibels (typical) 31db
  Security Performance
PAS 24
