S307A - 300 Series

Outward Opening Alu-Clad

Triple glazed timber framed door with aluminium cladding

Description
Technical

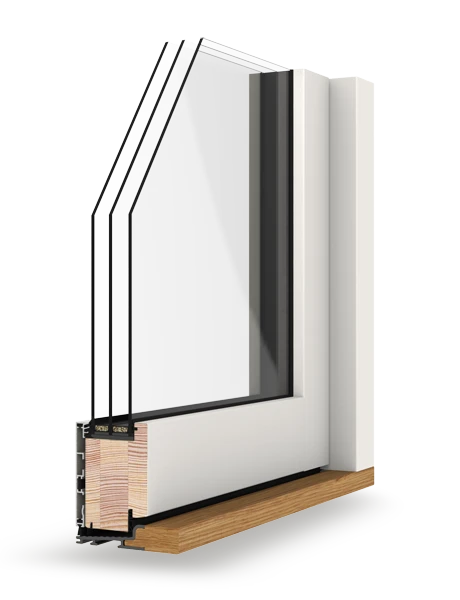

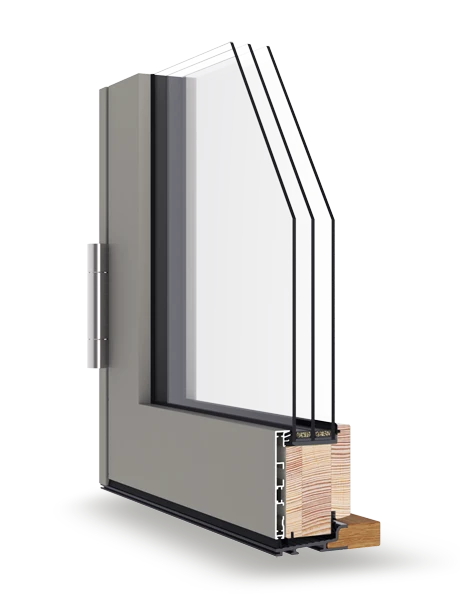

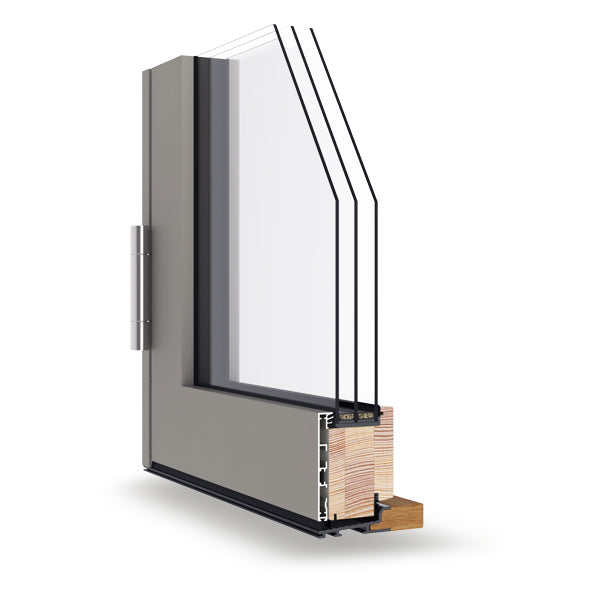

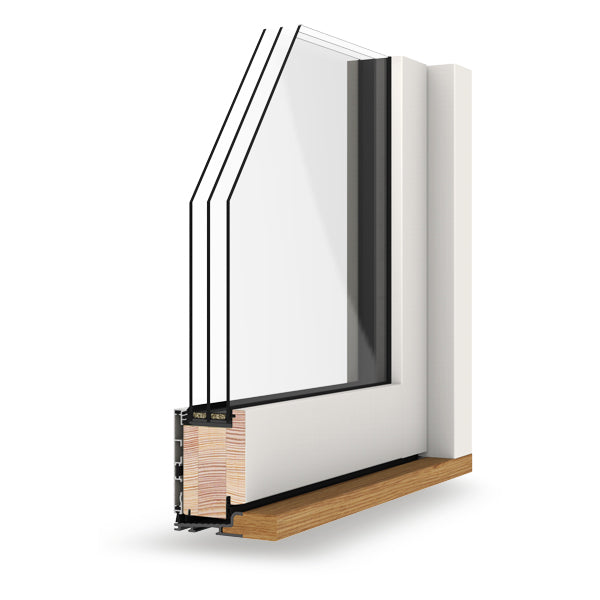

A triple-glazed timber framed door with optional Aluminium cladding.

One of our most popular framed doors, this model is available as a single entrance door or double doors, with or without sidelights. Hinges allowing 180-degree opening can be specified if required. Based on the same frame model as the P31, frame depths are variable from 94-122mm.

Typical U-values are approximately 0.76 w/m²K. This door is suitable for use in Passive Houses.

See the S307A in action

In these Passive House beachfront apartments
In this award-winning low energy home
In this beautiful traditional refurbishment
In this certified Passive House school
In this rural Passive House project.
In this futuristic newbuild project
In this agricultural Passive House project.
In this industrial style barn conversion
In this striking new build home

Thermal Performance
U Value (typical) 0.76

Sound Performance
Decibels (typical) 33db

Security Performance
PAS 24

Opening types	Outward Opening
Frame depth	94/122 mm
Whole window U-value	0.76 W/m²K
Glass U-value	0.53 W/m²K
Glass package	48 mm triple glazed, two panes Low-E, argon filled
Sound insulation	33 db
Air permeability	Class 4 (EN 12207:2000)
Watertightness	Class 7A (EN 12208:2001)
Wind load	NPD
Timber Colours	RAL
Aluminium Colours	RAL, IGP textured
Data sheet	S307A.pdf
Drawing	S307A.dwg
